AUTOCAD to GIS Headache

Source : Autodesk community forum

Recently, I was facing challenges in converting AUTOCAD Drawing files (.dwg) into useful shapefiles for both my work and (my own consultancy projects).

It is known that some organizations have GIS files for small scale sites while their engineering teams keep the large scale plans of the sites. Hence, there is an issue where the management is not able to see the big and the small picture of their assets.

Secondly, not everyone knows how to relate AUTOCAD plans to their daily life. They would like to see their site in a user friendly format (i.e. Google Maps, Google Earth).

Now we have looked at potentially scenarios, we need to ask ourselves what we should be prepared for when conversion of AUTOCAD to a GIS software (i.e. ArcMap). Below here are the things to be considered:

1. Is your file in dwg or dxf file format?
2. Do you know the projection of the AUTOCAD drawing is done?
3. Are you potentially aware that conversion will only bring spatial drawings (not the attributes)?

1. DWG or DXF Format?

.dwg file is native format for AUTOCAD. A .dxf file is interchangeable format of AUTOCAD product.

In ArcMap, one can freely add dwg file and all the layers (including attribute annotation) will come out. You can save them as a shapefile.

For QGIS, it will ONLY open a .dxf file. How can I convert .dwg to .dxf file? Refer to this article here for the procedure

2. Projection Issue

Everyone should realise one thing about conversion of AUTOCAD file to GIS file - there is no projection for the exported data. None at all!

How can I find the projection of AUTOCAD file. One is to open the dwg file on A360 Viewer. If you look at the survey plan, the mention of coordinate system or projections would be located at one of the corners of the plan.

If no (which I have encountered), please contact the source and obtain the projection name from the client or the surveyor.

Once we identified the name, we need to incorporate this projection to the GIS file. How?

QGIS

When you open the .dxf file or converted shapefile (adding vector), the system prompts you to add the coordinate system. Input the projection name and apply to all layers of AUTOCAD that is to be migrated into QGIS.

ArcGIS

In the case of ArcMap, the process is bit more complex. Bring the dxf file or converted shapefiles as unprojected files. Ignore all the error message. To ensure the shapefiles are to have the correct projection, we are going to do vector georeferencing. Vector georeferencing only works if the survey plan (AUTOCAD file viewed on A360) has coordinates marked on it or you find equivalent coordinates on another system.

To activate vector georeferencing, you must use Spatial Adjustment. When I was made aware of it by ESRI support, it worked wonders. Refer to the video below on how to use the tool.

3. Attributes?

While I do not have clear answers on this, it is important for you to be aware that conversion of AUTOCAD files to shapefiles WILL NOT BRING attributes (names, heights, feature types). If the file has limited attributes, one can manually add them as separate columns to the shapefiles (which I have done before).

However, if there are many attributes, I would like to hear your answers on bringing attributes effectively during the conversion.

Hope it helps!

Tutorial: How to Map Ethnic Distributions?

Have you wondered how to do multivariable map of ethnic distribution? It has baffled me for a year or more as I was guessing on how atlases and magazines manage to produce highly detailed linguistic or ethnic maps of countries.

Ethnic Map of Chicago (Penn State University)

Recently, I just found the way to do so. In Malaysia, obtaining micro level data (at census collection district level or lowest level population divisible unit like U.S or Australia) is impossible. The closest lowest level demographic data I could obtain was electoral polling district level. It is not a complete representation on the ground but a very good sample set.

In this blog post, I will show you we can imitate those multivariable ethnic maps.

• Excel Part
1. Obtain Excel data on population data of the region you want to explore



   Watch this video below on key things you need to consider in ensuring your Excel data is ready for a join in ArcMap.
2. As you can see the above Excel example, each row represents a polling district level data (for this instance). However, in order to produce those ethnicity maps as shown above, we should only consider the Majority ethnicity for the polling district level
3. For this case, we should only consider percentage figures.

4. The question is how can I choose the column header (ethnicity) of the maximum row value of percentage (percentage of selected ethnicity). Refer to this article to implement -https://www.extendoffice.com/documents/excel/2547-excel-find-highest-value-in-a-row-and-return-column-title.html
5. Once we determined the majority ethnic group per polling district level, we need to classify them of varying percentage brackets (i.e. 30%-50%, 50%-70%, Above 70%). Two additional columns are to be added.
6. For the first column, we will figure the percentage of majority ethnic group. We use the MAX function and highlight the attribute values (Refer here : http://www.accountingweb.com/technology/excel/identifying-largest-and-smallest-values-in-an-excel-list)
7. Once completed, the second column with categorization is added. Using filters, group your data and label the data correctly.
8. Prior to exporting to ArcMap or QGIS, copy and paste values only all the figures. This will remove all formulas as GIS system will not accept them
9. Save the cleansed polling district data in a .csv format. Watch the following video for recap or clarification of the steps above.

• ArcGIS part


1. In ArcMap, bring two datasets on the map using Add Data: .csv file of Population Figures and spatial data
2. It is absolutely important that the file format and value of Identifiers of two datasets are identical. I couldn't stress about this more because the attribute joins depends on commonality of the values and format
3. Right click the spatial dataset and choose Joins. Nominate the .csv file and choose the unique identifier. Run the Join
4. Ensure all the features are joined. Identify which ones fail and rectify them either in spatial or csv datasets
5. Once the Join is successful, go to Properties
6. In Properties, proceed to Symbology and choose categories. The field for Symbology visualization would be predominant ethnic group percentage classification.
7. Symbolize them with appropriate colour
8. Click Ok to apply the colour scheme
9. Check whether the desired map matches to your liking. Watch this video for recap or clarification of the steps above.

Happy emulating my example!

Mapping the Mega Mining Project

The Map of The Orinoco Mining Arc (Do not copy without prior permission)

* For bigger image and clarity, please click here

Gold, coltan, illegal mines, malaria, environment, money... So many things we can explain the Venezuelan Orinoco Mining Arc Project. Amidst of economic downturn, Venezuela opened up to massive transnational foreign investment for massive mining project. Venezuela is home to one of the biggest reserves of gold and coltan in the world (something we do not associate with Venezuela - home to world's largest reserves of oil)

This map I designed above documents the key things that would be affected by the Mining Project and also impact of artesanal mining (often illegal) in Orinoco region. While it is difficult to locate and place every possible impact of the project, these three maps will navigate you the context of the project


*I explicitly make it clear that I do not claim the ownership of any of the data needed for the map. The map is not for commercial use.

*Contact me here for any corrections or updates

Below here is the sources of the data (for the map)

1. http://www.el-nacional.com/sociedad/control-logrado-extraccion-ilegal-Guayana_0_644935743.html
2. http://www.warscapes.com/art/dirty-diamonds-south-america
3. http://www.arepadigital.com/nacionales/horribles-imagenes-de-la-devastacion-causada-por-el-arco-minero-en-nuestra-canaima-fotos-satelitales/
4. http://www.el-nacional.com/sociedad/Efectos-mineria-ilegal-Bolivar_5_893360657.html
5. http://www.el-nacional.com/siete_dias/riqueza-arrasara-arco-minero_0_839316160.html
6. http://www.el-nacional.com/siete_dias/bosque-pierde-terreno_NACIMA20160430_0045_1.jpg
7. http://www.desdelaplaza.com/raiz/lo-debes-saber-arco-minero-del-orinoco-infografia/
8. http://www.eluniversal.com/noticias/economia/arco-minero-ambiente_247568
9. http://periodicoellibertario.blogspot.com.au/2016/08/mapas-para-entender-al-arco-minero-del.html
10. http://www.opensourceinvestigations.com/latin-america/venezuelan-jungle-massacre/
11. https://www.icij.org/projects/coltan/venezuela-emerges-new-source-conflict-minerals
12. https://venezuelanalysis.com/analysis/11980
13. https://venezuelanalysis.com/analysis/11938
14. https://venezuelanalysis.com/analysis/12417
15. https://www.icij.org/projects/coltan/map-where-illegal-coltan-mining-thrives
16. http://www.wsj.com/articles/armed-gangs-confound-venezuelas-bid-to-exploit-gold-mines-1463477408
17. http://www.nytimes.com/2016/08/15/world/venezuela-malaria-mines.html?_r=1
18. http://agoracom.com/ir/Rusoro/forums/discussion/topics/289438-rusoro-knows-mining-the-venezuelan-way-metals-news/messages/1006058
19. Capa descargada de http://tapiquen-sig.jimdo.com. Carlos Efraín Porto Tapiquén. Orogénesis Soluciones Geográficas. Porlamar, Venezuela, 2015
20. DIVA-GIS
21. http://www.waterbase.org/download_data.html

Mapping My Story

Open the map link in a different browser




Three months ago, me and my team embarked the biggest challenge in our life. While the whole exercise is about the fundraising and pushing our mental and physical barriers, there are many ways to document our story.

Being a seasoned GIS professional, I know there is way to document the story in a such way that leverages my GIS skills without require much coding. Presenting to you: ArcGIS Online Story Map Journal.

Author at the far right of the photo

This post isn't dedicated on how to build the map story journal. However, I will be focusing more on key elements I have learnt in building my story using ArcGIS Online.

• Q: Why use a map to convey the story? Wouldn't photos and writing is sufficient?
• A: I firm believer that this challenge has a strong spatial aspects. Since Victoria (Australia) practice open data, it removed a big hurdle for me to download the datasets I needed to document the track. Live tracking wasn't needed as Oxfam website was keeping tabs on all teams. The map platform allows the user to relieve every key event of our experience as though they are walking on our footsteps.
• Q: Why ArcGIS Online as opposed to other platforms for journaling the story?
• A: I have encountered three to four major mapping platforms: ArcGIS Online, CartoDB, MangoMap and MapBox. As I am bringing pictures, graph images and creating multiple pages for the story, ArcGIS Online has a simple platform for bringing them together without requiring developer's knowledge. All other platforms would require significant coding to match ArcGIS Online standard
• Q: What are the challenges in building the map story?
• A: Much of my time was spent in obtaining the datasets of the track and extracting the relevant sections for the map. Secondly, choosing suitable colours and adjusting the base map transparency was a challenge. I want the users to be attracted to the tracks and key points rather than the background map.
• Q: What are key resources or learning I have learnt/acquired in building the map story?
• A: I leveraged the online documentation of ArcGIS Online Story Map Journal to build my platform. Click here to learn more. More importantly, my audience was my other resource. Some of them spent time in asking me to improve some content that has been delivered. I received consent of all my team members to advertise this map application

Interested to start your mapping journey? Contact me through a comment below or fill up your details to you right.

ESRI Directions & User Conference: Key Points

ESRI User Conference from Hoyts Cinema in Melbourne

Recently, I have attended two key sessions organized by ESRI Australia - Directions Live in May and User Conference (a special style) in June. In this blog post, I will highlight some key insights to ESRI ArcGIS new capabilities that you may want to consider:

1. ArcGIS Online: Does your organization or group host an ArcGIS Online Portal? Have you wondered on how to make it looking professional and reflect your organizational identity?
1. Configuring your home page - This documentation talks about adding your organizational feel to the home page of your portal
2. Customizing your home page - Resources for developers and who have additional time to create a great welcome to ArcGIS Online
3. Creating an Easy access to your web map applications - Wonder on how people can access your web map applications easily? Consider adding a sliding banner to home page.
4. Uploading your Print Template for Online Maps - ArcGIS Online has printing capacity for all the web map applications (based on your configurations). If you want the user to print a map according to your standards, you need ArcGIS server to stream the standardized printing layout to ArcGIS Online
2. Drone2Map: Combining drone technology and ESRI software powered by Pix4D, this tool is gaining a lot of traction in the mining industry and irrigation network management in Australia. In the mining industry, drones are much more efficient and cheaper in calculating the volume of rocks and earth moved around. Drones can be send to remote places where it is unsafe for humans to be in person for monitoring. Drone2Map has the capability to generate photorealistic 3D models.
3. Insights for ArcGIS: Drag and drop your data and generate instant maps. Create multiple charts and query the results you want. Find out more here.
4. ArcGIS Maps for Adobe Creative Cloud: For cartographers and communications professionals, this beta tool bring maps straight into Adobe Creative Suite. Find out more here.

Case Study

From the four pointers above, I have implemented in the key points for ArcGIS Online. In my company, we have an ArcGIS Online portal with groups (aggregate of users who produce, use and distribute the online maps). As the unofficial administrator for ArcGIS Online, I discussed with one of the groups who use my designed maps a lot for business. Fresh learned from ESRI Directions, I was interested to bring those ideas into action.

I discussed with this group and scoped their requirements. I came to know that

• They are finding difficult to see the maps they want
• Tag or Putting an Image that are suitable for the popular maps being used

Applying on the knowledge I have learnt, I began to modify the home page of my company's ArcGIS Online. With help of ESRI Australia, I placed a banner of the popular maps for the group to see by default first view. I customized the front page to reflect my Company's logo and business profile.

Currently, I am working on the best identifiers for the popular maps. Apparently, my group wants to see an image of map for every web application. A map that reflects the content of web map application. For them, that is the best way for them to identify their applications, not the title nor generic images.

Interested to find out more about capabilities of ArcGIS Online?

Contact me either on the contact form or drop a blog comment.

*This blog is not sponsored or endorsed by ESRI Australia/ ESRI in general. It is purely author's opinion

The author at ESRI User Conference

AECOM utilizing ArcGIS Online to convey their largest engineering work in Australia (ESRI Directions)



Map : How is it made?

Have you wondered a modern map is made?

Is there a lot of work needed to produce a map?

Today, we will watch the video (above) where I tell you the story on how a map is made.

By the end of the video, you will better idea on how maps are made and appreciate the efforts of a cartographer in producing your product.

Interested in a map? Want a wonderful graphic visual for your stories?

Contact me through my blog contact list (on right hand side) or drop a comment under the article.

When Spatial Join saved my time....

* Due to confidentiality, the names of the organizations and what the data was representing are not revealed.

*This content has been modified to accommodate new content for Intersect tool and better clarity for the procedure of Spatial Join
Recently, one of my senior colleague requested my GIS expertise to produce new insights on mutiple Excel spreadsheets. Basically, I was provided with:

1. MapInfo tab (which was converted to shapefile subsequently) file of a linear route (polyline). It had two rows of data - File A
2. MapInfo tab file of a polygon of the route with the segments (90+ rows) - File B
3. Excel spreadsheets over the years of condition data based on hundreds of points.

My first assignment with the project was to identify the need of adding a new asset or not on 90+ segments of this linear route. This was done through visual assessment of Street View. Since I am predominatly trained in the ESRI world, all the spatial data was converted into shapefile using QGIS Translating tools ('Save as' the MapInfo Tab as shapefile)

Intersect

Problem

The second part of the project was to calculate the distance of each segment of the polygon route (File B). It is clear that the automatic way of calculating distance for a polygon is not possible. Calculate Geometry tool only calculates perimeter or area of the the segment. However, we have File A where it is a polyline (where Calculate Geometry is able to compute distances).

File A (polyline) highlighted in blue and File B (polygon) lying below the polyline.

Solution

1. For this case, File A has two rows. I remove the shorter row as I need to calculate the maximum distance of each segment. Choose Edit mode and highlight the segment to be delete. Press the Delete ('X' sign)
2. Ensure the polygon file (File B) has valid geometry. If the polygon has 94 rows, each segment must be touching at each other and not overlapping or having gaps. For a successful Intersect to occur, geometry must be validated and errors must be rectified. I opted to use QGIS for geometry validation as it has easier to understand validation tool (Topology checker)
3. We have reached the most important part, how can I bring the 94 segments of polygon (File B) across to the single row of poyline (File A). We have two options here to consider : Union and Intersect. An output of union would create a polyline file of the File A and the perimeter of File B (see below)



   Union of File A (polyline) and File B (polygon)

4. Clearly from the above image, the Union does not produce the desired results. Let's look at the option called Intersect.
5. Under Geoprocessing, choose Intersect and populate the dialog box as shown below. Input the two features (File A and File B) in the dialog box



   Intersect Tool
6. Choose the output as line and let's bring all the attributes of the polygon to the polyline. Output as below.



   Intersect output

7. To verify the Intersect went well, do two checks on the dataset. Firstly, is the number of rows of the new polyline (File C) the same as the number of rows in polygon? This can be done viewing through the Attribute Table of the new polyline. Secondly, do a visual check. Overlay the new polyline with polygon of File B.Does it visually match? Refer to image below:



   Visual check. Is there any suspicions on the green line? Use the Information Tool to check the IDs




Spatial Join

Problem

However, the important part of this short blog post is about the third part. My consultant has an Excel spreadsheet of hundreds of points carrying condition and X and Y coordinates. He wants to know the relationship between points and File B (polygon segment). In short, he wants an updated Excel spreadsheet showing the condition points and the road segment it is attached to.

There are two ways to do this : manual visual check or a Spatial Join

Solution

Part A

1. Each Excel spreadsheet had approximately hundreds of coordinate points with the condition data. To display them, the file was saved as a .csv file and brought into ArcMap.
2. Subsequently, I chose display XY data (ignore the part you need to convert into layer) to visualize the hundreds of points on ArcMap. Please nominate the correct projection.
3. To proceed to the next stage, the csv output has been converted to point based shapefile.
4. Overlaying the condition data (point based) and File B (polygon file), you will see the results as below:

Demonstration of hundreds of points being overlayed over polygon.

Part B

Here is a situation where spatially, the Excel output and File B are located on the same place but from an attribute perspective, they have no relationship. My consultant wants to see the relationship of segments of File B and points. As mentioned before, there are two ways : Manual or Spatial Join.

The manual process is guessing the locations of points using ArcMap and populating them according to Excel. This is very tedious process. I am pretty sure that I wasn't consulted for tedious method, but for a GIS automatic process.

I contacted ESRI for assistance as I want to avoid the manual method. They recommended the Spatial Join.

1. Overlay the condition point data over File B.
2. Please ensure the polygons of File B do not overlap or have invalid geometry.
3. Go to ArcToolbox > Overlay>Spatial Join.
4. In the dialog box, please pay attention to important details as shown below.



   Spatial Join Tool



   1) Identify who is the Target feature - this is where the information (from adjoining file) will be carried across.
   2) Match Option - Since the join is done purely on spatial location basis, we do need to clarify the join is based on a particular premise. For this instance, points must wholly enclosed by segment - Completely Within.
5. In this case, we want to know the segment ID for each point. The Target Feature will be the points and the Join Feature is file B. Though optional for Field Map section, it is important to nominate the fields to be carried across to the output. The segment ID should be carried over.
6. Press Ok and the output (File D) comes out.
7. Overlay File D over File B. Perform a visual check. Change the symbology of File D and File B to reflect the distinctions of Segment ID. Refer to Image below.



   Spatial Join Output

8. Does the output make sense? Do check the points at the boundaries of the polygon segment.

Essentially, I was attaching the segment ID with thousands of points. As my consultant wants two Excel Outputs per year, this Spatial Join did a wonderful job in delivering desired result.

Once the new shapefile is produced, I pushed out the attribute information into Excel. Subsequently, I replicated the same procedures for all other Excel spreadsheet. I do recommend that everyone who opt this method should verify the results after the join is performed.

Below here is a video on how to do Spatial Join:

If you want to seek further clarification, please drop me a message below here or at the contact me page.

Mapping Elections - Malaysian Style

Recently, my map mind was reminded that I need to cover a hot topic coming up in Malaysia. On May 7th, Sarawak (the Land of Hornbills) - the biggest state in Malaysia is holding a state wide elections. Unlike other states, Sarawak does not conduct the state and parliamentary elections on the same time.

Credit : Cerevisae (Wikipedia)

Interestingly, the elections in Sarawak is happening amidst two big issues rocking Malaysia:

1. 1MDB (State Investment Firm) Scandal - global level scandal - which has destabilized the ruling (BN) federal government (of which Sarawak State government is an appendage to ruling powers in Kuala Lumpur). The leadership of Prime Minister Najib Razak has been severely attacked by within his party and the opposition for the financial mismanagement of 1MDB. A solid victory in Sarawak would bolster his position in the party and the government
2. New test for the reborn but fractious opposition coalition for a state wide election. While it is inconceivable that opposition (previously PR, now PH) will deny the ruling state government 2/3 majority, they made great headway in 2011 elections. However, with the popularity of current Chief Minister of Sarawak and infighting in the opposition, the image presented by opposition by the voters is dented.

This post is not about political analysis but how we can use map visualizations to gauge where the voters preference lay.  Presenting to you:

1. Sarawak 2016 Election Analysis - Toggle between three map layers to understand correlation of population density, political tendencies, seat fights and effect of 2015 redelineation on the electoral outcome. Designed by Danesh Prakash Chacko  View the Larger Map
2. Sarawak 2nd Round of Electoral Redelineation (2015) - Switch between layers to see the correlation of ethnicity, voting preferences and impact of redelineation on the electoral outcome. This map was designed when Election Commission was still proposing the 11 new seats and changes to the borders. Designed by Danesh Prakash Chacko View the Larger Map
3. Sarawak Electoral Redelineation 2011 and 2015  - Slide and swipe the map to see how the electoral boundaries have changed and whether the jarring gap between voters values have been addressed. Designed by Tindak Malaysia View The Map

Credits for the Information needed to build the Map : Tindak Malaysia, Borneo Post. These maps exception of 3rd map do not reflect the views of the data providers Tindak Malaysia and Borneo Post.

Please let me know what other information should I put for the map - we need to see feasibility of adding new information. Enjoy!



CEOs, booths... Locate Expo 2016

Locate16 is one of the big conferences of spatial sciences and surveying which draws audience from Australia and New Zealand. Though I did not attend the conference, I manage to convince my supervisors that I should attend the Expo (which is a free event).

My original intention is to attend the continuous lightning talks in the Expo. However, I found that lightning talks in a huge auditorium with many booths are not done in right setting. You, as a listener, get easily distracted by all the booths and connections you want to meet.

I spend most of my time in reconnecting with my old networks and visiting one booth to another. Guess what? I am very across on your business with latest updates. But on the flip side, you don't know much what my company do. However, the highlight of the Expo is to reconnect with CEOs who are keen to do business with my company. All I need is to approach these CEOs (they have done business with my company previously) as friends and next thing, they want talk about collaboration. Just need to mention the name of my company and everything flows - no sales pitch, no product selling...

What did I learn from the Expo:

1. I think a lot of geospatial conferences is targeted to a walled community. The people who are the industry and converted to think geospatial solutions is everything. Have you seen a medical person coming to an conference or Expo like this? No, despite ESRI may have geofencing solution for ambulance management.
2. It is difficult for me to be convinced that some associations can help my business to the next level. My company is not in the geospatial world but we do have partners in that realm. Yes these associations can partner my company with other vendors here and beyond. However, I am not convinced about the value addition to my company.                                                       When you join an association, ask yourself on how does it benefit you and your business or what can you contribute?
3. How do CEOs talk? Most interesting aspect of the Expo wasn't the booths or technology. It was the time I spent with business owners. Why do I say so? Observe how enthusiastic they were about their solutions and trying to pitch to me on integration. To show their business will make our solutions the master and driven on good quality spatial data. They don't even have to say to me the superiority of their solutions but just stressing we can be complementary partners.

That's my opinion about the Expo. What is your take on the geospatial conferences or Expos you have attended?

What should I put in and design for a Map?

Recently, it has been quiet on my blog post. I have been producing some random maps based on the topics I enjoyed. But is it worth writing a report on my maps? I put some thought about it and bang, an idea came out.

Though you may associate a lot of my works as GIS outputs, I prefer to be identified as a cartographer first, then GIS analyst second. Recently, I read an article on bad maps where maps are known to lie, maps built on dodgy sources and thematic colouring built on poor classification.

Today, we will be looking through some of my sample maps and explore the concept and design of the map.

Maps of LIDAR and 3D Visualizations

Garopaba Sand Dunes derived from LIDAR Data

Recently, I found out that my company had access to free 10 ESRI courses. I signed up one of them -Creating 3D Data Using ArcGIS. Though I have learnt this back in university, it was a good refresher course. It exposed to me many principles I need to consider when developing a 3D model. Subsequently, I signed up for another course of managing LIDAR data (Laser and Detection Ranging) but only to realize my ArcMap account in my company had restricted licence. My GIS hands became itchy and sourced LIDAR data and make a 3D Model.

I was happy to find that high quality LIDAR data are freely available on the website (Open Topography). For this map discussion, we will not be dwelling on how I converted the massive file into a beautiful TIN. The study site is the sand dunes of small section of Santa Catarina state in Brazil. LIDAR Data provided shown two areas : Garopaba and Itapiruba. Due to the massive amount of data, I decided to produce a map of one region - Garopaba.

The map I produced above was the first step for my 3D fly through of the video. This map is an example of my effort to produce maps purely using ArcMap. Yes, purely ArcMap product without the intervention of Illustrator. Some of the challenges producing the map above:

1. What kind of data is needed to show for the area? The road network, water areas etc.
2. The difficulty in finding a dataset that fits for this large scale map. This area is extremely small part of large Brazil
3. How much data should I put for this area? Remember, the focus is on the sand dunes, not the cities around it.
4. Classification of the elevation heights of Sand Dunes. I will not accept the categorization given by ArcMap. Unfortunately, some of the elevation heights included the Atlantic Ocean (shown in the map above). Choosing a colour scheme representative of the reality of the ground is tricky. I want the users to 'feel' the sand dunes
5. How much information should I put in the Legend? Is the Legend sufficient for a lay person to comprehend the map?
6. ArcMap has couple of options for you to add dynamic text: service credits, author name. By choosing one of the options (i.e. service credits for datasets), is there too much information?

3D Visualization of Batu Reservoir (Selangor, Malaysia)

The above map was purely a screen grab from ArcScene. Now, I ask you some questions for the above map.

1) Does this 3D visualization need a legend?
2) Is the Reservoir clearly visible for your eyes?
3) In this visualization, which stands out most for you? The road network, the lake or the mountains?

Environmental Map of Yasuni - Map built on complete thought process

Environmental Map of Yasuni

Now, let's examine this environmental issue map of Ecuador. Yasuni is one of the most biodiverse area in the world and is home to big oil reserves for the country. It has divided the country's political scene for many years after the failure of Yasuni-ITT initiative (Ecuador don't touch the forest for oil extraction and get compensated - world has failed Ecuador in 2013).

This map I have circulated on social media garnered many likes and 1 pluses. One of my more popular maps I have to say. However, let's understand the context on why I produce this map.

Firstly, I had an original plan to produce a gift map of Ecuador. I was inspired by one of the Yasuni maps shown in National Geographic Magazine map. Tested myself whether I can produce a map of similar quality to National Geographic purely from ArcGIS. This map was built on with proper thought process.

Since this is an environmental issue, I have identified that location of oil fields, forest areas, indigenous settlements and road networks are critical for the user the factors of this issue. How did I figure out what kind data needed? A lot of reading of articles and doing deduction from the articles.

After listing out, the search of the data commenced. I pulled as much data as possible and documented the sources. However, not all layers are going to be used in the map. I placed all the possible layers in ArcMap.

Subsequently, I did the classification of the elevation layer and choosing right colours for other layers. After this stage, I reached an important turning point - placing the labels. Since the map is to be done completely in ArcMap, I utilized Maplex Label Engine to have my labels at the best possible positions. It was here that I decided which layers ought to be removed and ought to be kept. Too many data layers clutter the map, makes the labels not legible and distract the user.

With labels placed, I have experimented significantly the colour schemes to ensure the map is legible and easy to understand.

When this map was posted on social media, I received insightful comments (aside 'nice work'):

1. Do we need to tell the users the red lines are roads in Legend?
2. The user spotted that a river line in the scale bar. Maybe need to find where in ArcMap scale bar setting you can make the changes
3. Should I make the roads thicker and river lines thinner? As roads are more important than rivers for this map context?
4. A better location for the North Arrow?
5. Should I put an inset map the location of this area in a wider region?

Thematic Map of Diaspora Communities

Simple Distribution Map built on strong research

Similar to my other products, this thematic map on diaspora communities was inspired by stories elsewhere. This map was built on much research and minimal effort on GIS part. To produce a map of diaspora like this, I faced numerous challenges:

1. When searching the figures of the diaspora, I was challenged at many times what is the definition of diaspora? Does diaspora include permanent migrants and temporary migrants? How about refugees?
2. The data currency was big issue. I want the latest data of diaspora community based on latest year. However, latest year figures vary from country to country. Hence I made a decision, the year variation should be kept less than 5 years.
3. The source of data. It must come from credible source, not from Wikipedia. All Wikipedia sources have been checked thoroughly.
4. I was bit disappointed that ArcMap did not a good job in creating the pie charts in the map above. There were some deficiencies which I found when I was formulating symbology for the diaspora figures

Conclusion

All in all, when producing maps, there are so many factors in producing and designing a map:

1. What is your theme?
2. Is it easy to get the data you need for the map?
3. Does all the dataset you brought in are relevant for the map?
4. What is the main focus of the map?
5. Is your map legible, presentable and truthful?

When you consult me for a map, these are factors I taken into consideration to produce a thought provoking, beautiful and legible map!

Throwing a fishnet for an Atlas

Fishnet for an Atlas? You wonder about the title of the post - Does it make sense? By the end of the article, you will clearly understand why.

* Due to privacy issues, the name of the council and final output of this project are not shown

Problem

Recently, I was asked to print a massive (I mean massive) CAD file of all the roads and minor lanes for a council. I was given a PDF of the CAD file which had given me a context of the size of the map. This map (CAD file) is for field inspection of roads and it is full of annotation. If I were to print out from the PDF on A3 or even A0, a lot of the details (i.e. indicators) on the CAD files would remain obscure. We are talking about the high level of detail and we do realize the downside of CAD file - Text labels cannot be re-sized dynamically for different scales.

First Attempted Solution

With this problem in mind, (from my past experience), data driven pages and mapbook approach of ArcGIS is the way to go to solve the problem. We need to segment this problem of printing of CAD file into couple of parts:

1. Can the Drawing file (.dwg) imported straight into ArcGIS or QGIS?
2. What is the scale of the map that it should be designed so that users can read the maps?(legibility)
3. Does the CAD file has/ require a projection?
4. How can I divide the council into a proper grid for data driven pages

As my computer does not have AUTOCAD, we need to address the first issue. Which software I should choose to view the CAD (.dwg) File. For ease of conversion, I opted for ArcGIS 10.3. Refer to this link for the process of conversion

Once the file was brought across, I exported selected number of useful element of CAD file into shapefiles. On the layout option of ArcGIS, I temporarily created a layout of the map and other map elements.  Meantime, I found out that dwg. file had no projection. The council could not find the projection of the file. Hence, I temporarily projected into a projection that was suitable for the region.

However, looking back on the completed the projection, this print work may not require a projection in the first place.

As the work to design the map for print was unfolding, I felt the projection was required. This is because I will be using other projected datasets to be basis of the grid for Data Driven Pages. Hence, all the datasets including .dwg file.

I experimented with two scale levels for legibility test. One was 1:2000 and  another was 1:5000

It was clear 1:5000 does not show the information the user needs on the field. Let's look at 1:2000 example

After my supervisor agreed that 1:2000 scale was the way forward, now we reach the final question - How to divide the CAD file into multiple sheets?

My old (initial approach) was to find other freely available datasets which are suitable for large scale maps. After hours of experimenting with them and data driven pages, I wasn't satisfied. The scale of the map was either too large or too small.

Meantime, I made some moves to beautify the maps for the ease of reading. However, the question remains unanswered - how to divide the dwg. file into evenly spaced (with a good scale of 1:2000) for the entire region ?

Creating Fishnet

I googled my answer and stumbled on GIS Stack Exchange, the answer I was seeking for. The commentator suggested that we should use Create Fishnet in ArcGIS. Please watch the video below to understand Fishnet.

Bingo! The answer I was looking for is ready for implementation. I did some initial experiments for some regions and found this is workable. Eventually, I implemented the Fishnet for the entire region (after couple of rounds of experimenting) and the grid I desired has emerged.

I placed the Grid into Data Driven Pages and it generated 135 maps at the scale of 1:2500 (which is good enough). I exported them into PDF and filtered many which are not useful sections for print.

Conclusion

Looking back, Create Fishnet approach eliminated the need for me to find other dataset to create customized grid. In my opinion, this approach works well when you don't have the desired dataset for the grid formation.

Hope all of you learned one new thing in ArcGIS!

Empowering Sales through GIS

Source: http://vectorart.org/uploads/Business-Presentation--business--businessman--businesswoman--5501.jpg

Happy New Year fellow Readers & Followers! And Happy 2nd Year for this Blog! Now the holiday season is over, I am back at blogging. Today's article is a unique story. A story where a non-GIS specialist developed a GIS application which helped the company (in one way or another) to secure a deal with a big client.

*For privacy reasons, the names of the company, the client and key person in the story will not be revealed. Moreover, the sample video for the pitch is confidential.

Context

Around November 2015, I was approached by my Business Development Manager (BDM) to produce a map visualization to show the capability of the company's software. This software is a financial predictive software and churns out powerful figures in Excel or graphical format. However, two years ago, we made a decision to use these powerful figures and visualize asset conditions for next 10 or 20 years. A map is the best way to convert data into great insights! Since everyone in my company knows that I am into the GIS world, I have been producing these visualizations using ArcGIS Online. These visualizations showed the impact of two different budgets (based on predictive software) on the assets (e.g. shown in the image below). All of them are popular among the Sales team for their pitches.

This time, my BDM had a different idea. He may have been inspired by my time-based animation of Malaysian railway history. Instead of standard swipe comparative maps (refer to this example), how about visualization changes of asset condition every year for next 10 or 20 years?

The Start

Initially, I took up this project as I am always enthusiastic of pushing my GIS capabilities. I was supplied with GIS data and predictive figures from the software. My first approach on this matter is to use ArcGIS Desktop to the join and perform time-based visualization. I ruled out QGIS as the tool for this visualization due to clunky nature of the time tool.

Some issues propped up using ArcGIS:

1. The number of assets (lineworks) were very high (went to thousands). This impacted the performance of ArcGIS time animation both on Desktop and Online counterparts
2. There was a projection issue as the data supplied had projection file shared for multiple shapefiles.

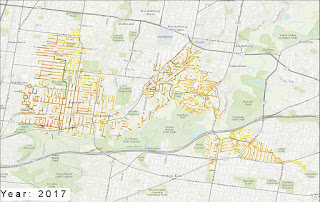

3. The final product of this work is to create a video of time animation of asset condition changes (imagine colour changes for lines that are deteriorating). With so many assets, ArcGIS Online had incredible difficulty to visualize the changes. Similarly, ArcGIS Desktop had lags that are visible to our eyes. Definitely, this video of this animation doesn't sit well for a sales pitch

The Turn Around

Using the ArcGIS approach was clearly not working for thousands of assets. What options do we have? My BDM is of civil engineering background and  have been exposed to the world of GIS. While I was working through the problems I have faced with ArcGIS, my BDM started to experiment QGIS for time based visualization. I explained to him all the problems I am facing with ArcGIS approach.

He wrote an email to me: "When you had time, come over that I show you a new way I've found to create it much easier. I'm sure you will like it :)" He had successfully overcome my issue with QGIS time tool by showing a smooth time based animation of asset condition changes. Somehow, my BDM managed to get the right time format needed in QGIS visualization.

Similar to ArcGIS, QGIS animation was also slow and unusable. However, QGIS can create an image file from each frame .Then he took the image frames (as png files) into PowerPoint using its Insert Album feature and exported the presentation as a movie file after setting the timing and transitions and also adding required labels.

What a brilliant work around for QGIS!

Did QGIS trumped ArcGIS? I will not argue on that

I know for sure that my BDM was empowered with GIS to enhance his sales pitch. While I was on holiday, he manage to secure the client. We can speculate that video of QGIS visualization captivated the prospect.

In short, if you are in business, maybe consider using GIS to enhance your sales work. Maybe consider using GIS to make your next business decision!
